Topic: DMD0116

Help File Version: 2.10.0.636

STDEVPR - Population Standard Deviation of a Range


This instruction can only be used in the Expression parameter of the Calculate Expression (MATH) instruction.



The Population Standard Deviation of a Range (STDEVR) math function calculates the Population Standard Deviation across a Range of values in a data-block. Generally speaking, standard deviation shows how much variation or "dispersion" exists from the average (mean, or expected value). A low standard deviation indicates that the data points tend to be very close to the mean, whereas high standard deviation indicates that the data points are spread out over a large range of values.



This is the mathematical formula used, where N denotes the number of data points, xi denotes each individual data point, and x-bar denotes the average (or mean) of the N data points.



When only a sample of data from a complete population is available, the Population Standard Deviation can be estimated by a modified quantity called the Sample Standard Deviation, which can be calculated using the Sample Standard Deviation of a Range (STDEVR) math function.





Note: Use the F9 key or click the 'three dot box' at the right edge of the parameter field to open the Default Element Selection Tool (the Element Picker or the Element Browser) or use the Down-Arrow key (Auto-Complete) on any parameter field to see a complete list of the memory locations that are valid for that parameter of the instruction.

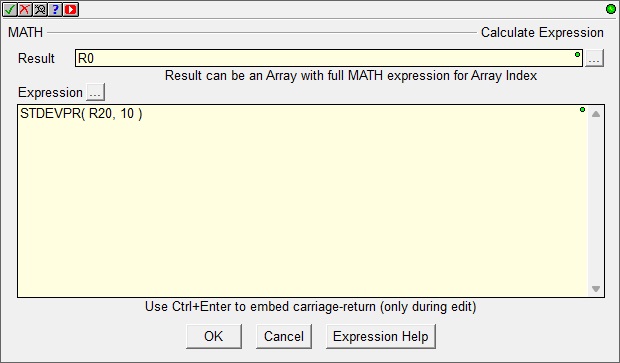

Result specifies a location to store the result of the calculation. This function always evaluates to a floating-point values, so selecting a writable Real (floating point) location is the proper choice.



The Expression parameter consists of all the text between the bounding parentheses. The parameter list must consist of 2 parameters separated by a comma. Each parameter is an expression which can be a constant value, a bit or numeric memory location, an arithmetic expression, and / or mathematical function or other expressions up to a maximum of 1024 characters. Expressions can be nested, so use of parentheses is recommended to ensure proper evaluation order.

This function has two parameters separated by a comma:

The first parameter is the first location in the range of values. This can be any readable any numeric or bit data block location, including casts and structure members (fields of heap structures are not supported).



The second parameter specifies the number of successive locations that are in the range. Note that this value is a count value, it does NOT specify the ending location. This can be any constant value from 1 to 65535, or a bit or numeric memory location, an arithmetic expression, and / or mathematical function or other expression. Expressions can be nested, so use of parentheses is recommended to ensure proper evaluation order.



If the second parameter (Range) is 0 or 1, the result will be set to 0 and ST132 (Argument Out of Range) will be ON.



If the second parameter (Range) exceeds the size of the data block , the result will be calculated using the values up to the last variable in the block and ST132 (Argument Out of Range) will be ON. For example, assume the block of WX locations has a range of WX0 to WX255. The result of STDEVPR( WX250, 10 ) would be the Population Standard Deviation of the 6 values in WX250 through WX255, and ST132 (Argument Out of Range) will be ON.




See Also:

STDEVPR - Population Standard Deviation of a Range



STDEVR - Sample Standard Deviation of a Range




Related Topics:

MATH - Calculate Expression



AVGR - Average of a Range of Values



MAXR - Maximum Value Across a Range of Values



MINR - Minimum Value Across a Range of Values



SUMR - Sum of a Range of Values

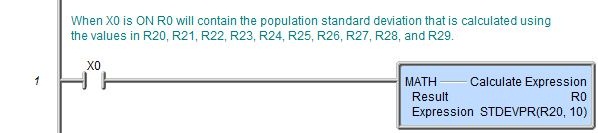

Rung Example:
