AVGR - Average of a Range of Values

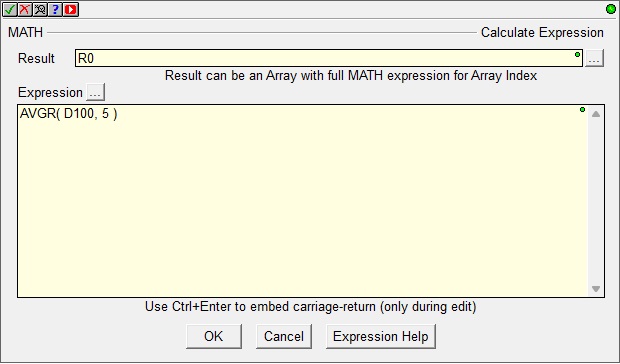

This instruction can only be used in the Expression parameter of the Calculate Expression (MATH) instruction.



The Average of a Range of Values (AVGR) math function calculates the average of the values in the specified range of variable locations.





Note: Use the F9 key or click the 'three dot box' at the right edge of the parameter field to open the Default Element Selection Tool (the Element Picker or the Element Browser) or use the Down-Arrow key (Auto-Complete) on any parameter field to see a complete list of the memory locations that are valid for that parameter of the instruction.



Result is a numeric memory location to store the result of the calculation. This function always evaluates to a floating-point values, so selecting a writable Real (floating point) location is the proper choice.



The Expression parameter consists of all the text between the bounding parentheses. Any expression parameter can be a constant value, a bit or numeric memory location, an arithmetic expression, and / or mathematical function or other expressions up to a maximum of 1024 characters. Expressions can be nested, so use of parentheses is recommended to ensure proper evaluation order.



This function has two parameters separated by a comma:

The first parameter is the first location in the range of values. This can be any readable any numeric or bit data block location, including casts and structure members (fields of heap structures are not supported).


The second parameter is the number of successive locations that are in the range. Note that this value is a count value, it does NOT specify the ending location. This can be any constant value from 1 to 65535, any numeric location, or any regular math expression - for example (D3 - D1).



If the second parameter (Range) is 0, the Result will be 0 and Argument Out of Range (ST132) will be ON.



If the second parameter exceeds the size of the data block , the result will be the sum of the values up to the last variable in the block and Argument Out of Range (ST132) will be ON. For example, assume the block of WX locations has a range of WX0 to WX255. The result of AVGR( WX250, 10 ) would be the average of the values in WX250 through WX255, and Argument Out of Range (ST132) will be ON.




See Also:

AVGR - Average of a Range of Values


MAXR - Maximum Value Across a Range of Values



MINR - Minimum Value Across a Range of Values


SUMR - Sum of a Range of Values


STDEVPR - Population Standard Deviation of a Range



STDEVR - Sample Standard Deviation of a Range




Related Topics:

MATH - Calculate Expression


MAX - Maximum Between Two Expressions



MIN - Minimum Between Two Expressions

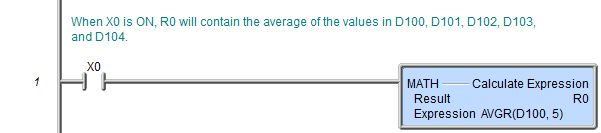

Rung Example:
