MOVEBIT - Move Single Bit


The Move Single Bit (MOVEBIT) instruction is used to copy the value of a single bit location to a single bit destination location.






Parameters:

Note: Use the F9 key or click the 'three dot box' at the right edge of the parameter field to open the Default Element Selection Tool (the Element Picker or the Element Browser) or use the Down-Arrow key (Auto-Complete) on any parameter field to see a complete list of the memory locations that are valid for that parameter of the instruction.



Source specifies the bit memory location to be copied. This can be a constant value of 0 or 1, or any readable bit location.



Destination specifies the bit memory location where the value will be copied to. This can be any writable bit location.




See Also:

INIT - Initialize Data



MAPIO - Map Inputs and Outputs



MEMCLEAR - Clear Memory Range



MEMCOPY - Copy Memory Range



MOVE - Move Value



MOVEBIT - Move Single Bit



MOVER - Move Range of Values



REFWRITE - Write Value Indirectly



RSTR - Reset Range



SETNUMR - Set Numeric Range



SETR - Set Range



STRCOPY - Copy String



STRCOPYR - Copy a Range of Strings

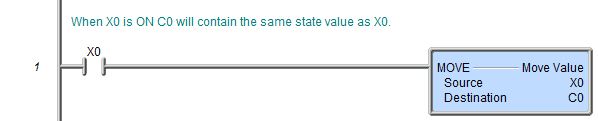

Rung Example:
