STRCOPYR - Copy a Range of Strings


The Copy a Range of Strings (STRCOPYR) instruction copies one contiguous range of Strings to another contiguous range of Strings.




Parameters:

Note: Use the F9 key or click the 'three dot box' at the right edge of the parameter field to open the Default Element Selection Tool (the Element Picker or the Element Browser) or use the Down-Arrow key (Auto-Complete) on any parameter field to see a complete list of the memory locations that are valid for that parameter of the instruction.



Start Source String specifies the first String in the range of Strings to be copied. This can be any system-defined or user-defined String.

Range: shows the range of Source strings based on the current Start Source String and Count value.

Start Destination String specifies the first String in the range of Strings where the Strings will be copied to. This can be any system-defined or user-defined String.

Range: shows the range of Destination strings based on the current Start Destination String and Count values.

Count specifies how many contiguous Strings to copy. This can be any constant from 1 to 65535, or any numeric location containing a value in that range.

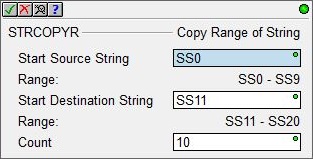

Ladder Display:


See Also:

STRCOPY - Copy String



STRCOPYR - Copy a Range of Strings




STR2REAL - Convert String to Real



STR2INT - Convert String to Integer



STRCASE - Convert String to UPPER / lower Case



STRCLEAR - Clear Strings



STRCMP - String Compare



STRDELETE - Delete Substring



STRFIND - Find within String



STRINSERT - Insert Substring



STRPRINT - Print to String



STRSUB - Get Substring



STRTRIM - Trim Whitespace



STRTRUNC - Truncate String




Related Topics:

COPY - Copy Data



INIT - Initialize Data



MEMCOPY - Copy Memory Range



MOVE - Move Value

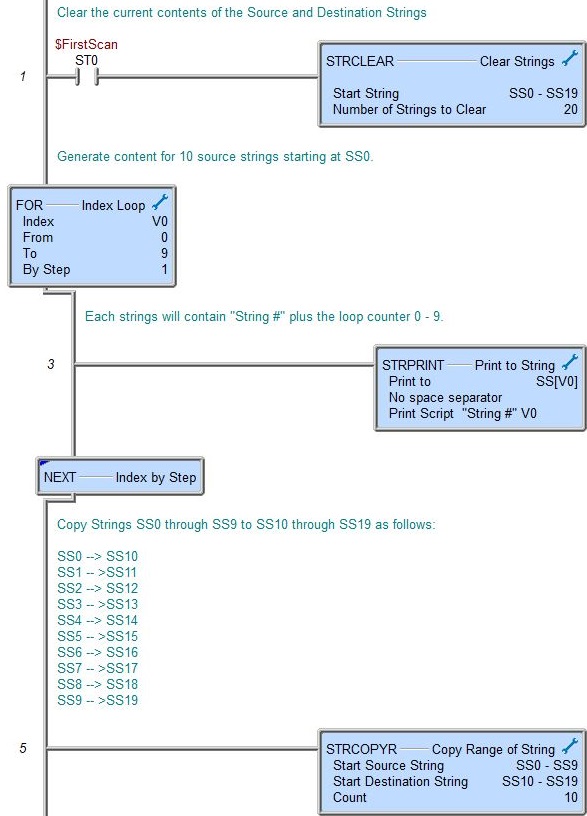

Example:
