Topic: DMD0011 RSTR - Reset Range |
|
When the input logic is ON, the Reset Range (RSTR) instruction turns OFF all of the specified discrete memory locations within the specified range. When the input logic is OFF, the discrete memory locations in the range are not affected.
|
|
Parameters:Note: Use the F9 key or click the 'three dot box' at the right edge of the parameter field to open the Default Element Selection Tool (the Element Picker or the Element Browser) or use the Down-Arrow key (Auto-Complete) on any parameter field to see a complete list of the memory locations that are valid for that parameter of the instruction.
Start specifies the first discrete memory location of the range. This can be any writable bit location.
End specifies the last discrete memory location of the range. This can be any writable bit location from the same block of bit data specified in the Start parameter and sequentially later in the memory range.
|
|
See Also:
RSTR - Reset Range
|
|
Related Topics:
INI - Immediate Discrete Input
|
|

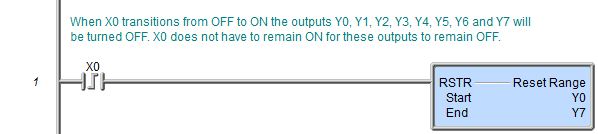

Rung Example:
|
|
