Topic: DMD0173

Help File Version: 2.10.0.636

STRTRUNC - Set String Length


The Set String Length (STRTRUNC) instruction will set the length of a String to the specified number of characters.






Parameters:

Note: Use the F9 key or click the 'three dot box' at the right edge of the parameter field to open the Default Element Selection Tool (the Element Picker or the Element Browser) or use the Down-Arrow key (Auto-Complete) on any parameter field to see a complete list of the memory locations that are valid for that parameter of the instruction.



String - the String to set the length of. This can be any writable user-defined or system-defined String.



Length - specifies the length (in characters) to make the String. This can be any readable numeric location, or a constant value between 0 and the maximum length of the String.



If a length of 0 is specified this will set the length to 0.



If a negative length is specified, the length will be set to the maximum length of the String, and a "Buffer Overflow" Warning message will be generated.



If the specified length is longer than the current length of the String (<string>.Length), the length will be set to specified value, and the current string will be padded with NULL characters (0x00), not spaces.



If the specified length is longer than the maximum length of the String (<string>.MaxLen), the length will be set to the maximum length of the String, the current string will be padded with NULL characters (0x00), a "Buffer Overflow" Warning message will be generated




Status Display:

Before executing the STRTRUNC instruction:



After Executing the STRTRUNC instruction:



The Status display will only show as many of the characters of the String as will fit within the borders of the instruction, typically this is about 50 characters.




See Also:

STR2REAL - Convert String to Real



STR2INT - Convert String to Integer



STRCASE - Convert String to UPPER / lower Case



STRCLEAR - Clear Strings



STRCMP - String Compare



STRCOPY - Copy String



STRCOPYR - Copy a Range of Strings


STRDELETE - Delete Substring



STRFIND - Find within String



STRINSERT - Insert Substring



STRPRINT - Print to String



STRSUB - Get Substring



STRTRIM - Trim Whitespace



STRTRUNC - Truncate String




Related Topics:

String Functions Overview



String Scripting Language Reference

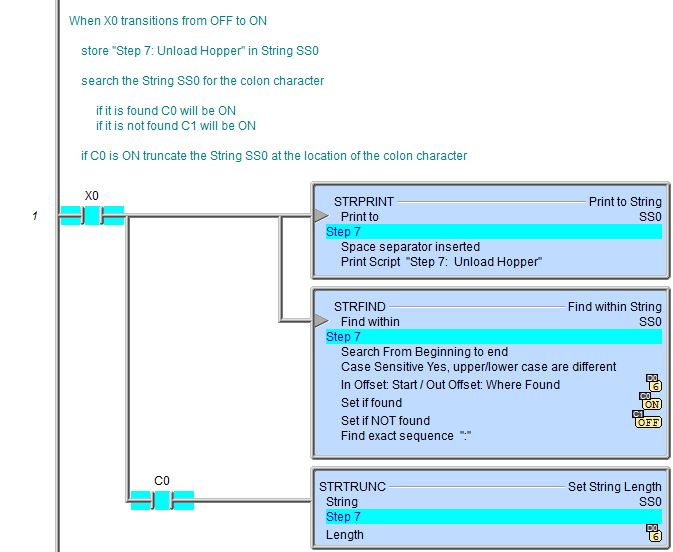

Rung Example:
