Topic: DMD0165

Help File Version: 2.10.0.636

STRDELETE - Delete Substring


The Delete Substring (STRDELETE) instruction will remove characters from a String. When characters are deleted, any trailing characters are shifted toward the beginning of the string to take their place.






Parameters:

Note: Use the F9 key or click the 'three dot box' at the right edge of the parameter field to open the Default Element Selection Tool (the Element Picker or the Element Browser) or use the Down-Arrow key (Auto-Complete) on any parameter field to see a complete list of the memory locations that are valid for that parameter of the instruction.



Input / Output String - the String that contains the characters to be deleted. This can be any User-defined or System-defined String.



Starting at Offset - specifies the position of the first character to be deleted. This can be any constant value from 0 to 1023 or any readable numeric location containing a value within that range. The first character is at offset 0. If the specified offset is longer than the current length of the string , Input / Output String will remain unchanged and an "Argument out of range" Warning message will be generated.



Number of Characters to Delete - specifies how many contiguous characters to delete from the string. This can be any constant value from 0 to 1023 or any readable numeric location containing a value in that range.

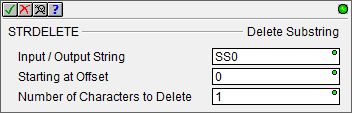

Status Display:

The Status display of the Delete Substring instruction will only display as many of the characters of the String as will fit within the borders of the instruction, typically this is about 50 characters.



Before executing the STRDELETE instruction:



After executing the STRDELETE instruction:




See Also:

STR2REAL - Convert String to Real



STR2INT - Convert String to Integer



STRCASE - Convert String to UPPER / lower Case



STRCLEAR - Clear Strings



STRCMP - String Compare



STRCOPY - Copy String



STRCOPYR - Copy a Range of Strings



STRDELETE - Delete Substring



STRFIND - Find within String



STRINSERT - Insert Substring



STRPRINT - Print to String



STRSUB - Get Substring



STRTRIM - Trim Whitespace



STRTRUNC - Truncate String




Related Topics:

String Functions Overview



String Scripting Language Reference

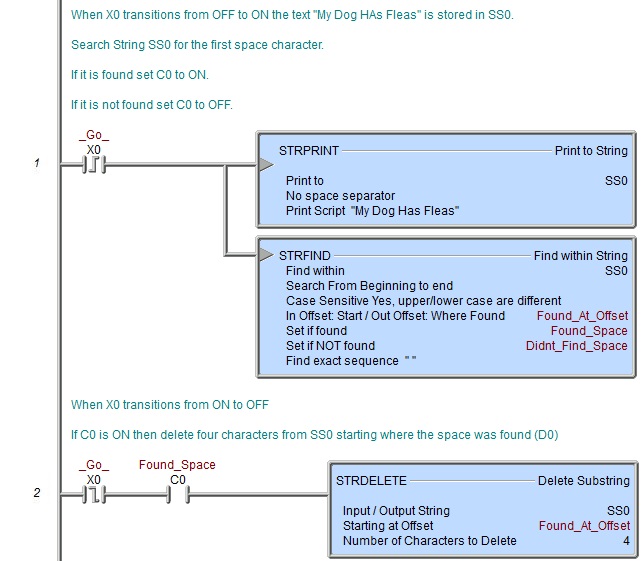

Rung Example:
