RST - Reset Coil


The Reset Coil (RST) instruction turns OFF a discrete memory location. This instruction is normally used to turn OFF a discrete memory location that has been turned ON by a SET instruction. It is NOT necessary for the input logic to remain ON for the discrete memory location to remain OFF.

It is advisable that you avoid referencing the same discrete output point with an OUT or OUTI instruction that you also reference with a SET / RST or SETI / RSTI pair of instructions.




Parameters:

Note: Use the F9 key or click the 'three dot box' at the right edge of the parameter field to open the Default Element Selection Tool (the Element Picker or the Element Browser) or use the Down-Arrow key (Auto-Complete) on any parameter field to see a complete list of the memory locations that are valid for that parameter of the instruction.



Parameter specifies the discrete memory location to reset. This can be any writable bit location.




See Also:

NOP - No Operation



OUT - Output Coil



RST - Reset Coil



RSTR - Reset Range



SET - Set Coil



SETR - Set Range




Related Topics:

INI - Immediate Discrete Input



OUTI - Output Immediate Coil



RSTI - Reset Immediate Bit



SETI - Set Immediate Bit

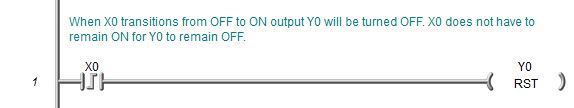

Rung Example:
