END - End Coil


The End Coil (END) instruction skips over all of the ladder logic from the point where the END coil is placed to the end of the Program or Task. Used this way, the END coil can be used to help debug ladder logic problems.





The END coil is an unconditional output, meaning that no input logic is allowed on the rung with the END coil. Use of the END coil is optional in all code-blocks as none of them require and END coil to mark the end of the code-block.




Parameters:

This instruction has no parameters.




See Also:

END - End Coil



ENDC - Conditional End of Code-Block



EXIT - Exit This Program



HALT - Halt Program or Task



RESTART - Restart Program or Task



SUSPEND - Suspend Program or Task



YIELD - Yield Program or Task




Code Block Overview



Programs



Tasks



Subroutines



Interrupt Service Routines



Termination Scan Behavior

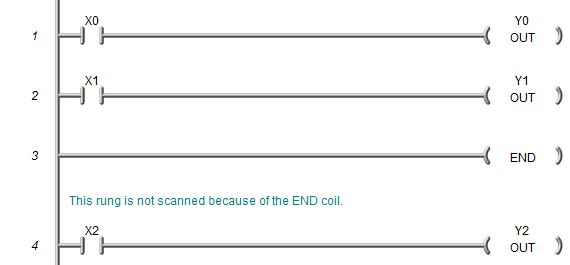

Rung Example:
