ENDC - Conditional End of Code-Block


If the input logic is ON, the Conditional End of Code-Block (ENDC) instruction skips over all of the ladder logic from the point where the ENDC is placed to the end of the Code-Block. This instruction can be used in a Program, Task, or Interrupt Service Routine, but it can NOT be used in a Subroutine, use the RETC - Conditional Return Back to Call instruction instead.






Parameters:

This instruction has no parameters.




Status Display:



The green triangle in the upper left corner indicates this is a Skipping instruction.




See Also:

END - End Program or Task



ENDC - Conditional End of Code-Block



EXIT - Exit This Program



HALT - Halt Program or Task



RESTART - Restart Program or Task



SUSPEND - Suspend Program or Task



YIELD - Yield Program or Task




Code Block Overview



Programs



Tasks



Subroutines



Interrupt Service Routines



Termination Scan Behavior

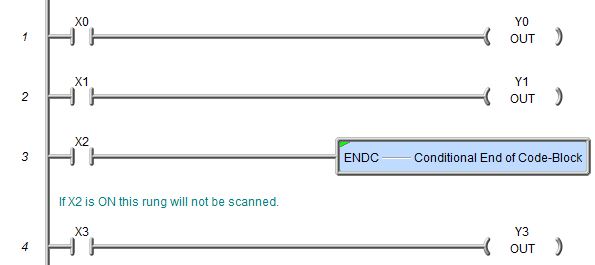

Rung Example:
