Topic: DMD0428
FLASHER - Cycle Output On / Off
The Cycle Output On / Off (FLASHER) instruction will repeatedly turn a bit location ON then OFF at prescribed rate as long as the input logic remains ON.
Parameters:
Note: Use the F9 key or click the 'three dot box' at the right edge of the parameter field to open the Default Element Selection Tool (the Element Picker or the Element Browser) or use the Down-Arrow key (Auto-Complete) on any parameter field to see a complete list of the memory locations that are valid for that parameter of the instruction.
On Time is the amount of time (in milliseconds) the output will be ON during one On / OFF Cycle. This can be any constant value from 1 to 32767 or any numeric location containing a value in that range.
Off Time is the amount of time (in milliseconds) the output will be OFF during one On / OFF Cycle. This can be any constant value from 1 to 32767 or any numeric location containing a value in that range.
Output is the bit location that will be cycled On and Off. This can be any writable Bit location.
The yellow triangle in the upper left corner indicates this is a Multi-Scan instruction.
See Also:
Related Topics:

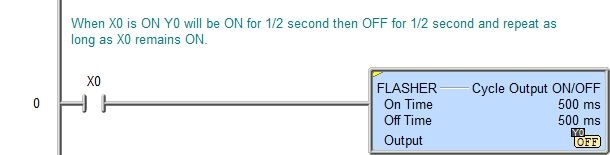

Example:
