PONOFF - Push On / Push Off
|
|
Each time the input logic for a Push On / Push Off (PONOFF) instruction transitions from OFF to ON, the Push On / Push Off instruction will
invert the designated bit location. This function is also known as a Toggle output coil. The instruction can be configured with an optional, external
Reset location.
|
|
Parameters:Note:
Use the F9 key to open the Default Element Selection Tool (the Element Picker or the Element Browser) or use the Down-Arrow key (Auto-Complete) on
any parameter field to see a complete list of the memory locations that are valid for that parameter of the instruction.
In / Out - specifies the discrete memory location that will be toggled. This can be any writable bit location.
Reset - optionally enable an additional bit location that, when ON, will turn OFF the In / Out Bit location.
|
|
Status Display:
The gray triangle at the right end of the input leg indicates this input is edge-triggered, meaning that
each time the instruction's input logic transitions from OFF to ON, the specified bit location will be ON for one complete scan.
|
|
See Also:
OUT - Output Coil
ND - Trailing Edge One Shot
PD - Leading Edge One-Shot
SET - Set Coil
RST - Reset Coil
PONOFF - Push On / Push Off
|
|

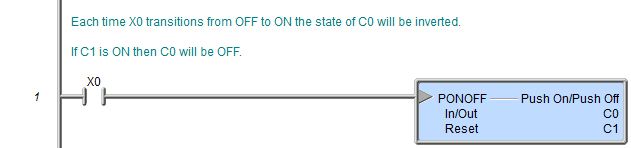

Rung Example:
|
|
