BRX Analog


Setup BRX Analog Inputs

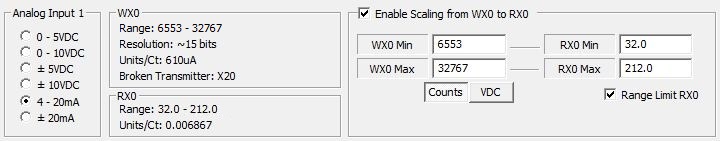

Depending on which model of BRX CPU, there are 1 to 4 analog input channels located at WX0 through WX3. These channels can be configured to accommodate either Voltage or Current transducers. Each channel can optionally be scaled and the resulting floating point value placed in RX0 through RX3 respectively.





Analog Input # - selects the input type which will then determine the Range, Resolution, Units / Count, and if required, the location of the Broken Transmitter indication.



Selection

Description

Range

Resolution

micro-Volts per Count

micro-Amps per Count

Broken Transmitter

0 - 5VDC

unipolar 5 volts DC

0 - 16383

14 bits

305

n/a

n/a

0 - 10VDC

unipolar 10 volts DC

0 - 32767

15 bits

305

n/a

n/a

+/- 5VDC

bipolar 5 volts DC

-16384 - 16383

15 bits

305

n/a

n/a

+/- 10VDC

bipolar 10 volts DC

-32768 - 32767

16 bits

305

n/a

n/a

4 - 20mA

unipolar 4 - 20 milliamps

6553 - 32767

15 bits

n/a

610

first unused X location

+/- 20mA

bipolar 20 milliamps

-32768 - 32767

16 bits

n/a

610

n/a



Enable Scaling from WX# to RX# - enables the automatic scaling of the raw input value to engineering units.

WX# Min / WX# Max - the minimum and maximum raw values determined by the Analog Input Type selection.

Counts / VDC - displays the WX#'s Min and Max values in terms of the range of counts or the range of volts / milliamps.

RX# Min / RX# Max - minimum and maximum values for the Engineering Units.

Range Limit RX# - if enabled and the calculated scaled value is lower than RX # Min or higher than RX# Max, the specified Min and Max values will be used.




Setup BRX Analog Outputs

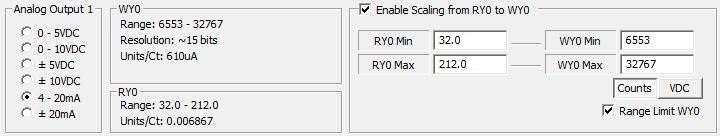

Depending on which model of BRX CPU, there are 1 or 2 analog output channels located at WY0 through WY1. These channels can be configured to accommodate either Voltage or Current devices. The value for each channel can optionally be scaled from the floating point values in RY0 through RY1 respectively.





Selection

Description

Range

Resolution

micro-Volts per Count

micro-Amps per Count

0 - 5VDC

unipolar 5 volts DC

0 - 16383

14 bits

305

n/a

0 - 10VDC

unipolar 10 volts DC

0 - 32767

15 bits

305

n/a

+/- 5VDC

bipolar 5 volts DC

-16384 - 16383

15 bits

305

n/a

+/- 10VDC

bipolar 10 volts DC

-32768 - 32767

16 bits

305

n/a

4 - 20mA

unipolar 4 - 20 milliamps

6553 - 32767

15 bits

n/a

610

+/- 20mA

bipolar 20 milliamps

-32768 - 32767

16 bits

n/a

610



Enable Scaling from RY# to WY# - enables the automatic scaling of the value in engineering units to the raw output value.

RY# Min / RY# Max - minimum and maximum values for the Engineering Units.



WY# Min / WY# Max - the minimum and maximum raw values determined by the Analog Output Type selection

Counts / VDC - displays the WY#'s Min and Max values in terms of the range of counts or the range of volts / milliamps.



Range Limit WY# - if enabled and the calculated scaled value is lower than WY# Min or higher than WY# Max, the specified Min and Max values will be used.
