SWAPB - Swap Bytes


The Swap Bytes (SWAPB) instruction is used to swap the Bytes and / or the Words in the designated range of locations. This instruction will begin at the first Source location and swap the Bytes and / or Words, then store the result in the first destination location. This operation will be repeated the number of times specified by the Elements value on successive Source locations.






Parameters:

Note: Use the F9 key (Element Browser) or Down-Arrow key (Auto-Complete) at any time to see a complete list of the memory locations that are valid in the current field of the instruction.



Source is the first location to operate on. This can be any readable numeric block location.



Destination is the first location to store the result. This can be any writable numeric block location.



Note: Source and Destination do not have to be the same Type but they must be the same Element Size, that is, they both must consist of Word (16-bit) or DWord (32-bit) size elements. If the Source and Destination are different sizes use the Translate from Do-more (PUBLISH) and Translate to Do-more (SUBSCRIB) instructions to perform the Byte Swap.



Elements specifies how many successive Word or DWord elements the Swap Bytes instruction will operate on.



Select Swap Byte to swap the Bytes in each of the Words or DWord elements.



Select Swap Word to swap the Words in each of the DWord elements.






Only Swap Bytes, Word elements, V0 -> V100



V0

0x1234

V100

0x3412

V0

0x5678

V100

0x7856

V0

0xABCD

V100

0xCDAB





Only Swap Bytes, DWord elements, D0 -> D100



D0

0x12345678

D100

0x34127856

D0

0x90ABCDEF

D100

0xAB90EFCD





Only Swap Words, DWord elements, D0 -> D100



D0

0x12345678

D100

0x56781234

D0

0x90ABCDEF

D100

0xCDEF90AB





Swap Words and Bytes, DWord elements, D0 -> D100



D0

0x12345678

D100

0x78563412

D0

0x90ABCDEF

D100

0xEFCDAB90




See Also:

STR2INT - Convert String to Integer



STR2REAL - Convert String to Real



SWAPB - Swap Bytes



PUBLISH - Translate from Do-more



SUBSCRIB - Translate to Do-more




Related Topics:

STREAMIN - Stream In Data from Device



STREAMOUT - Stream Out Data to Device



PACKETIN - Input Data from Packet Device



PACKETOUT - Output UDP to Packet Device



MRX - Modbus Network Read



MWX - Modbus Network Write

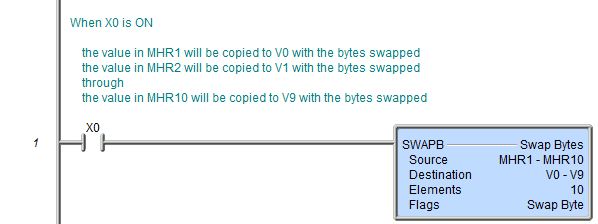

Rung Example:
