MAXR - Maximum Value Across a Range of Values
This instruction can only be used in the Expression parameter of the Calculate Expression (MATH) instruction.
The Maximum Value Across a Range of Values (MAXR) instruction determines the maximum value in the specified range of variable locations.
Note: Use the F9 key or click the 'three dot box' at the right edge of the parameter field to open the Default Element Selection Tool (the Element Picker or the Element Browser) or use the Down-Arrow key (Auto-Complete) on any parameter field to see a complete list of the memory locations that are valid for that parameter of the instruction.

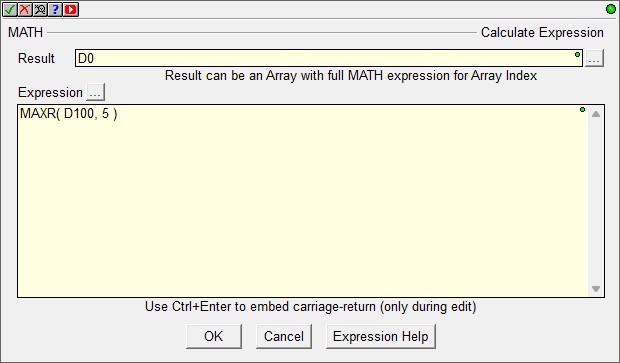

Result is a numeric memory location to store the result of the calculation. This can be any writable numeric location.
The Expression parameter consists of all the text between the bounding parentheses. The parameter list must consist of 2 parameters separated by a comma. Each parameter is an expression which can be a constant value, a bit or numeric memory location, an arithmetic expression, and / or mathematical function or other expressions up to a maximum of 1024 characters. Expressions can be nested, so use of parentheses is recommended to ensure proper evaluation order.
This function has two parameters separated by a comma:
The first parameter is the first location in the range of values. This can be any readable any numeric or bit data block location, including casts and structure members (fields of heap structures are not supported).
The second parameter is the number of successive locations that are in the range. Note that this value is a count value, it does NOT specify the ending location. This can be any constant value from 1 to 65535, any numeric location, or any regular math expression - for example (D3 - D1).
If the second parameter (Range) is 0, the result will be -214748368 and Argument Out of Range (ST132) will be ON.
If the second parameter (Range) exceeds the size of the data block, the result will be the maximum value in the range up to the last variable in the block and Argument Out of Range (ST132) will be ON. For example, assume the block of WX locations has a range of WX0 to WX255. The result of MAXR( WX250, 10 ) would be the maximum value in the range of WX250 through WX255, and Argument Out of Range (ST132) will be ON.
See Also:
AVGR - Average of a Range of Values
MAXR - Maximum Value Across a Range of Values
MINR - Minimum Value Across a Range of Values
SUMR - Sum of a Range of Values
STDEVPR - Population Standard Deviation of a Range
STDEVR - Sample Standard Deviation of a Range
Related Topics:
MAX - Maximum Between Two Expressions
MIN - Minimum Between Two Expressions

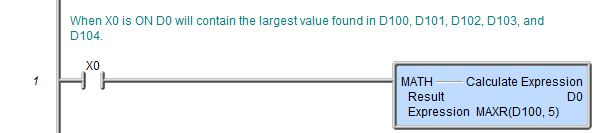

Rung Example:
