CTUPDLVL - CTRIO Update Level


The CTRIO Update Level (CTUPDLVL) instruction is used to change the Level configuration of one of the CTRIO's Discrete Outputs (for description of that function see Discrete Output For Input Function under (2) Level (button) bullet). The CTUPDLVL instruction can be used with both the CTRIO and CTRIO2 module. After the level value is updated, the input transitions to a traditional Enable function, meaning that as long as the ladder logic input has power flow, the output will be enabled.



Changes made to CTRIO Preset tables using this instruction do not change any of the Preset tables that were configured in the Module Configuration for the CTRIO. They are temporary and are lost on a power-cycle of the CTRIO or if some other table is loaded in their place. The changes made by this instruction cannot be viewed in the Module Configuration.

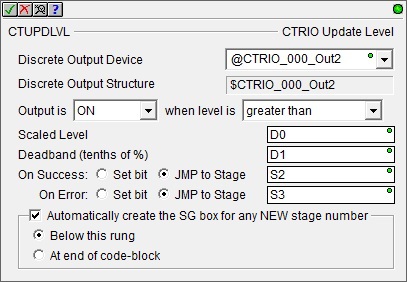

Parameters:

Note: Use the F9 key or click the 'three dot box' at the right edge of the parameter field to open the Default Element Selection Tool (the Element Picker or the Element Browser) or use the Down-Arrow key (Auto-Complete) on any parameter field to see a complete list of the memory locations that are valid for that parameter of the instruction.



Discrete Output Device - selects which preconfigured CTRIO Discrete Output device to use. Before this instruction can select a Discrete Output device, a CTRIO Device must be configured with at least one of its output channels setup for Discrete output mode.

no devices available - indicates that there are no CTRIO Discrete Output devices that have been configured that can perform this instruction.



create module - will open the Create New Module Configuration dialog where a CTRIO Module can be created and then a CTRIO Discrete Output device can then be configured.

Discrete Output Structure - displays the name of the Discrete Output structure that will be used by this instruction. This structure was created when the CTRIO module configuration was read during the Module Configuration phase.




Output is - specifies the new Output state: ON or OFF.



When Level is - specifies the level comparison operator: Greater thanor Less than.



Scaled Level - specifies the new Level value. This can be any constant value of any readable numeric location.



Deadband (tenths of %) - specifies the new deadband value in tenths of a percent. This can be any integer constant value in the range of 0 to 1000 or any readable numeric location.




The On Success and On Error parameters specify what action to perform when this instruction completes. You do not have to use the same type of selection for both On Success and On Error.



If the Set Bit selection is used for either On Success or On Error, the specified BIT location will be SET OFF when the instruction is first enabled and will remain OFF until the instruction completes. Once complete, the appropriate Success or Error bit location ON. The specified Bit location is enabled with a SET (Latch) operation meaning that it will remain ON even if the input logic for the instruction goes OFF.



If the JMP to Stage selection is used for either On Success or On Error the target Stage must be in the same Program code-block as this instruction, you cannot specify a target Stage that exists in a different Program code-block. When the operation finishes, the target Stage will be enabled the same way as a standalone Jump to Stage (JMP) instruction would do it. The JMP to Stage option will only be available if this instruction is placed in a Program code-block.



On Success selects which of the following actions to perform if the operation is successful:

  • Enable SET Bit then specify any writable bit location.
  • Enable JMP to Stage then specify any Stage number from S0 to S127 in the current Program code-block.



On Error selects which of the following actions to perform if the operation is unsuccessful:


  • Enable SET Bit then specify writable bit location.
  • Enable JMP to Stage then specify any Stage number from S0 to S127 in the current Program code-block.



If either the On Success or On Error selections are set to JMP to Stage, Automatically create the SG box for any NEW stage number will be enabled which will automatically create any target stage that does not already exist.

  • Below this rung will create the new target stage on a new rung following this instruction.
  • At end of code-block will create the new target stage as the last rung of this Program.



Note: any time the On Error condition occurs, the CTRIO generates an Error Code that can be read in the <Module Name>.ErrorCode (Module Name is the name assigned to the CTRIO in the Module Configuration). The List of Error Code values (in decimal) follows:



Error Code

Description

000

No Error

100

Specified command code is unknown or unsupported

101

File number not found in the file system

102

File type is incorrect for specified output function

103

Profile type is unknown

104

Specified input is not configured as a limit on this output

105

Specified limit input edge is out of range

106

Specified input function is unconfigured or invalid

107

Specified input function number is out of range

108

Specified preset function is invalid

109

Preset table is full

110

Specified Table entry is out of range

111

Specified register number is out of range

112

Specified register is an unconfigured input or output

113

Specified output is not configured as a limit on this output

114

Specified preset function invalid in PLS table

115

Specified PLS function invalid in preset table

116

PLS table entries overlap

117

Attempted to use axis function when pulse output is not in Axis Mode

118

Specified output isn't a pulse output

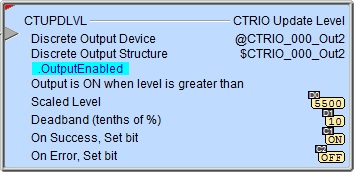

Status Display:



The status display of the instruction shows Values: Scaled Level, Deadband (tenths of %), and Pulse Time (ms), and the Highlight: .OutputEnabled bit.



The red triangle in the upper left corner of the status display indicates this is a Fully Asynchronous instruction.



The gray triangle at the right end of the input leg indicates the input is edge-triggered, meaning this instruction will execute each time the input logic transitions from OFF to ON.



CTRIO Structure Field Care-Abouts:

The following is a list of the"dot" fields of the CTRIO structure that are programmatically used with the CTRIO Update Level (CTUPDLVL) instruction. To see a complete listing of all CTRIO structures and members, go to the Project Browser --> Configuration --> Memory --> I/O --> Specialty.



COLOR KEY

Blue: CTRIO Input

Maroon: CTRIO Output

Black: CTRIO Module

Silver: Not used for this instruction



Note: The red "x" is the digit 0, 1, 2, or 3.



CTRIO_000

CTUPDLVL

MEMBER

R/W

TYPE

DESCRIPTION

_CxFx.AtResetValue

RO

Bit

ON if CxFx count is at reset value

_CxFx.CaptureComplete







_CxFx.CapturedStart







_CxFx.CountCaptured







_CxFx.EnableCapture







_CxFx.fReg1

RO

Dword

If floating-point scaling is configured for CxFx in CTRIO: Floating-point scaled value; otherwise, number has no meaning

_CxFx.fReg2







_CxFx.iReg1

RO

Dword

If integer or BCD scaling is configured for CxFx in CTRIO: Signed-integer or BCD scaled value; otherwise, signed-integer raw count

_CxFx.iReg2

RO

Dword

If any scaling is configured for CxFx in CTRIO: Signed-integer raw count; otherwise, number has no meaning

_CxFx.Output







_CxFx.Reset

R/W

Bit

Set ON to reset CxFx count

_CxFx.Timeout







_Outx.AtPosition







_Outx.AtVelocity







_Outx.Direction







_Outx.EnableOutput

R/W

Bit

Set ON to enable the CTRIO discrete output that will operate with the Preset Table

_Outx.GotoPosition







_Outx.Output







_Outx.OutputActive







_Outx.OutputEnabled

RO

Bit

ON when CTRIO output has been enabled

_Outx.OutputPosition







_Outx.OutputStalled







_Outx.OutputSuspended







_Outx.OutputVelocity







_Outx.TableComplete

RO

Bit

ON when the last entry in the Preset Table has been executed (i.e. the count is higher than the last preset in the table)

.ErrorCode

RO

Word

Last CTRIO error code

.Mode

RO

Word

Indicates CTRIO mode: 2 = RUN; 1 = PROGRAM

.ScanTime

RO

Word

CTRIO scan time in microseconds

.MaxScanTime

RO

Word

Maximum CTRIO scan time in microseconds

.InputState

RO

Word

Upper byte is not used. Lower byte's nibbles indicate CTRIO's channel's input's state in order: .ChxD, .ChxC, .ChxB, .ChxA. It is a composite of these members

.OutputState

RO

Word

Each nibble indicates a CTRIO output configuration and state: .OutxType, .OutxDiscOn, .OutxDiscEnabled, .OutxPulseActive. It is a composite of these members

.ChxA

RO

Bit

ON when CTRIO Channel x Input A is ON

.ChxB

RO

Bit

ON when CTRIO Channel x Input B is ON

.ChxC

RO

Bit

ON when CTRIO Channel x Input C is ON

.ChxD

RO

Bit

ON when CTRIO Channel x Input D is ON

.OutxType

RO

Bit

Configuration: ON if CTRIO output x is configured for pulse output

.OutxDiscOn

RO

Bit

Status: ON if CTRIO output x logic is ON (if output x is enabled then the physical output will also be ON)

.OutxDiscEnabled

RO

Bit

Configuration: ON if CTRIO output x is configured for discrete output

.OutxPulseActive

RO

Bit

Status: ON if CTRIO output x is generating pulses



NOTES:

(1)This structure member only available for CTRIO2 (not CTRIO). For CTRIO this remains zero.




See Also:

CTDYNPOS - CTRIO Run Dynamic Position Mode


CTDYNVEL - CTRIO Run Dynamic Velocity Mode


CTUPDLVL - CTRIO Update Level



CTPLSADD - CTRIO2 Add Entry to PLS


CTPLSEDT - CTRIO2 Edit PLS Entry


CTREGRD - CTRIO Read Register


CTREGWR - CTRIO Write Register


CTRUNPOS - CTRIO Run Position Mode


CTRUNVEL - CTRIO Run Velocity Mode


CTTBLADD - CTRIO Add Entry to Preset Table


CTTBLCLR - CTRIO Clear Table


CTTBLEDT - CTRIO Edit Preset Table Entry


CTTBLLD - CTRIO Load Table

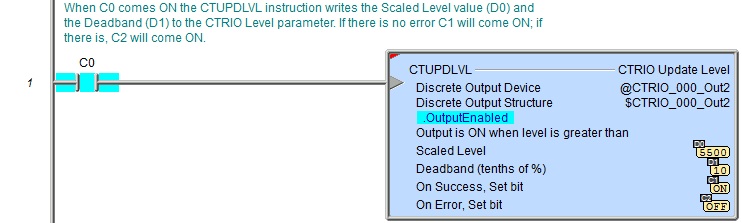

Example:
